West Brook Road Bridge Viaduct
The West Brook Road Bridge Viaduct over the Wanaque Reservoir
The West Brook Road Bridge carries the re-located West Brook Road across the Wanaque Reservoir. The West Brook Road Bridge was constructed between 1926 and 1928 and is a seven-span, reinforced concrete beam bridge supported on poured concrete piers. The bridge was designed to carry the vehicular and pedestrian traffic of West Brook Road, a local, two-lane roadway, over the Wanaque Reservoir (A.G. Lichtenstein & Associates 1994).

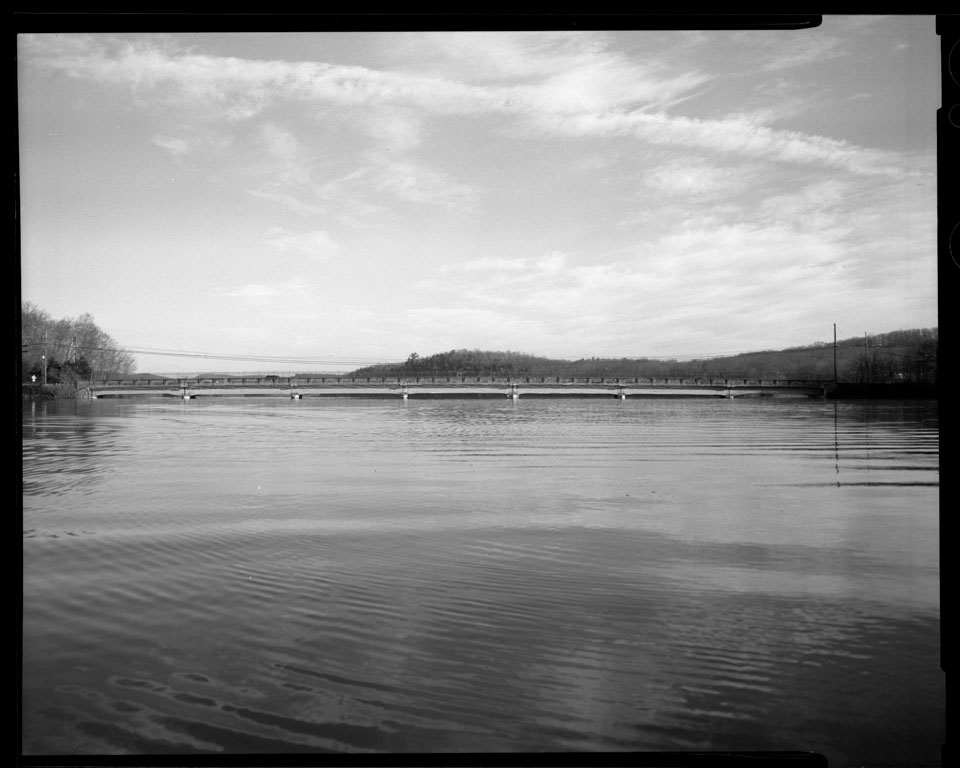

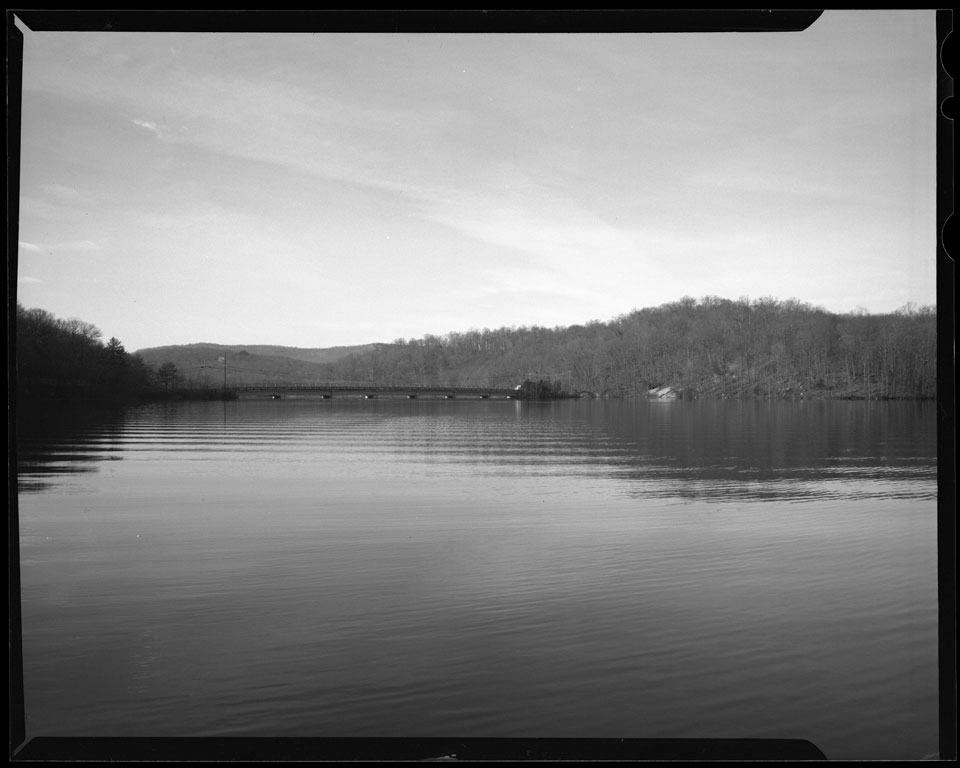

View of bridge in context from east. View looking southwest. |

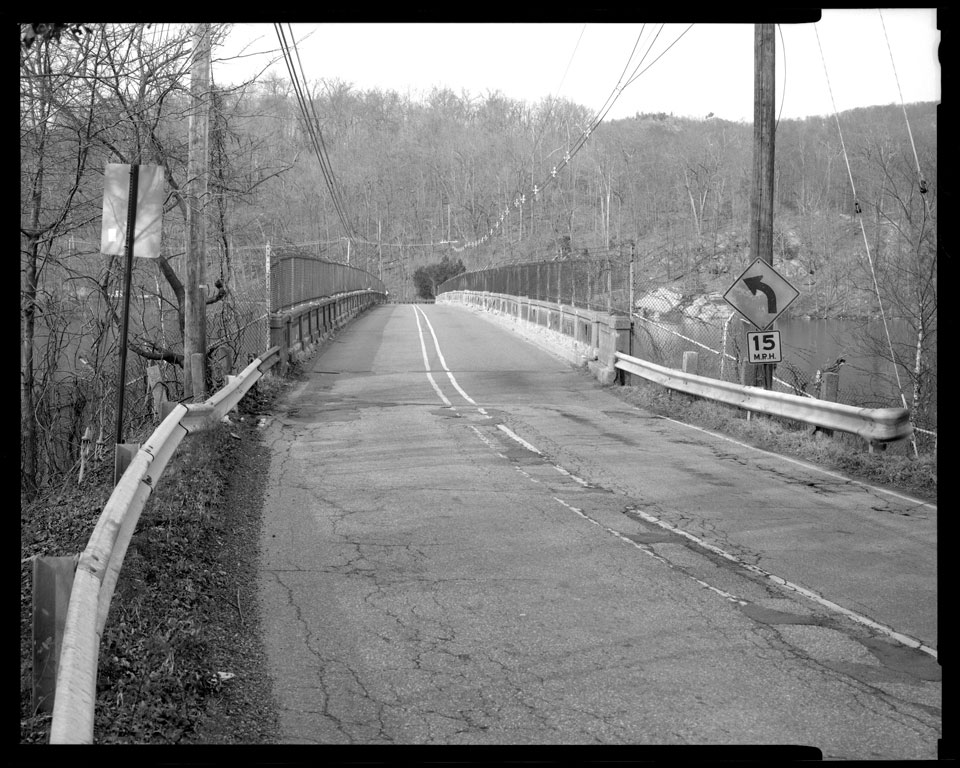

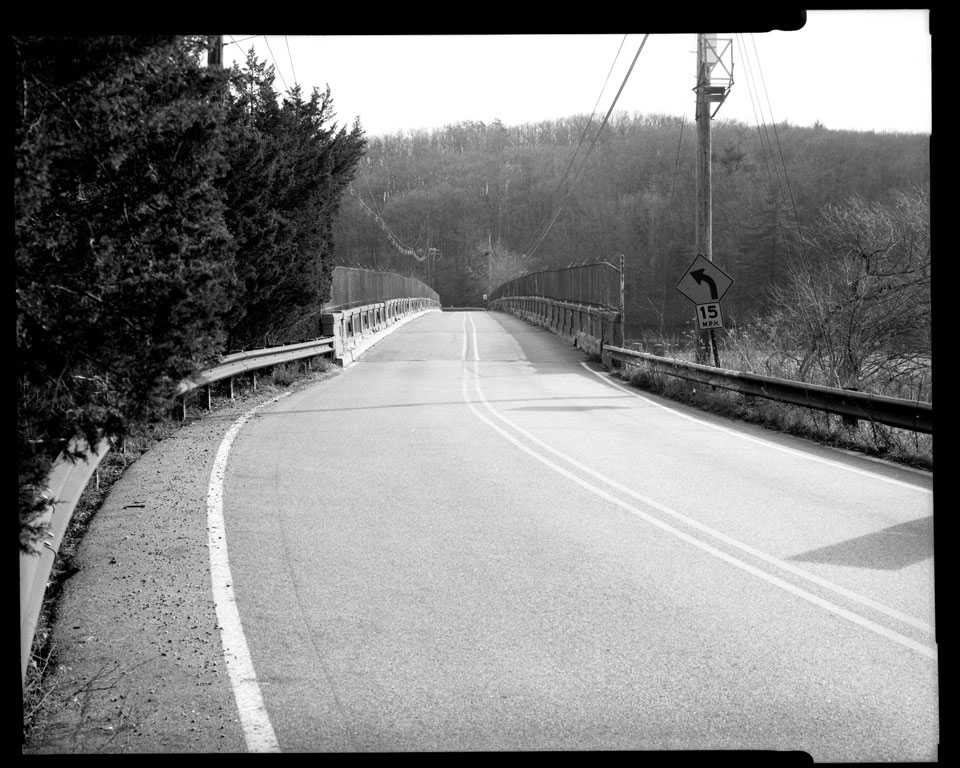

Approach to bridge from east side. View looking southwest. |

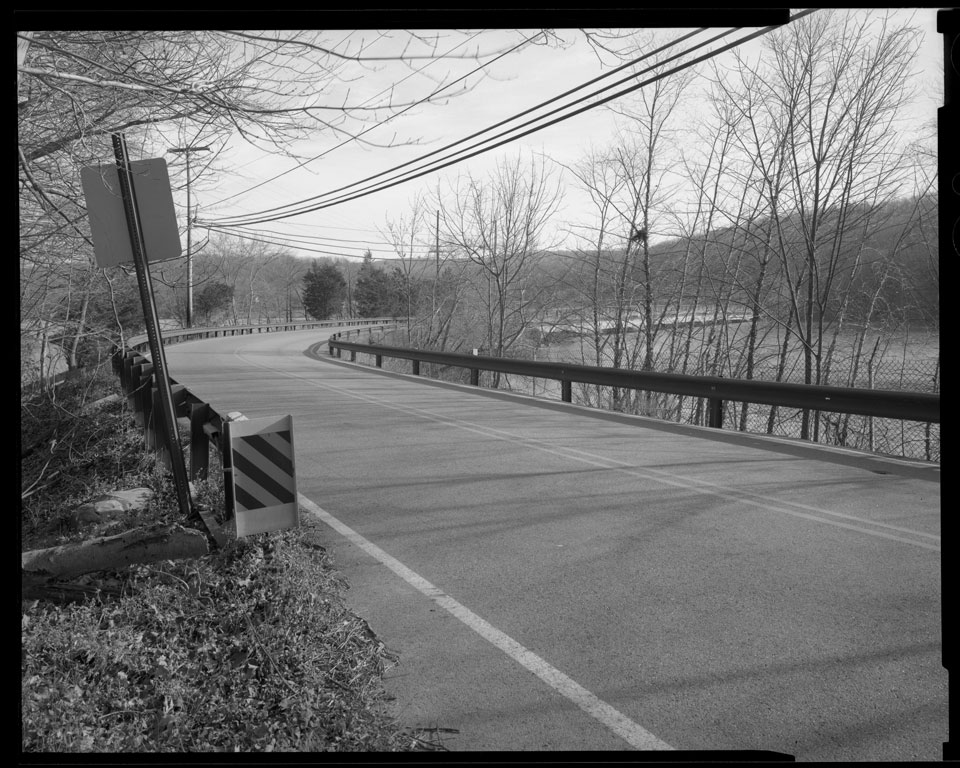

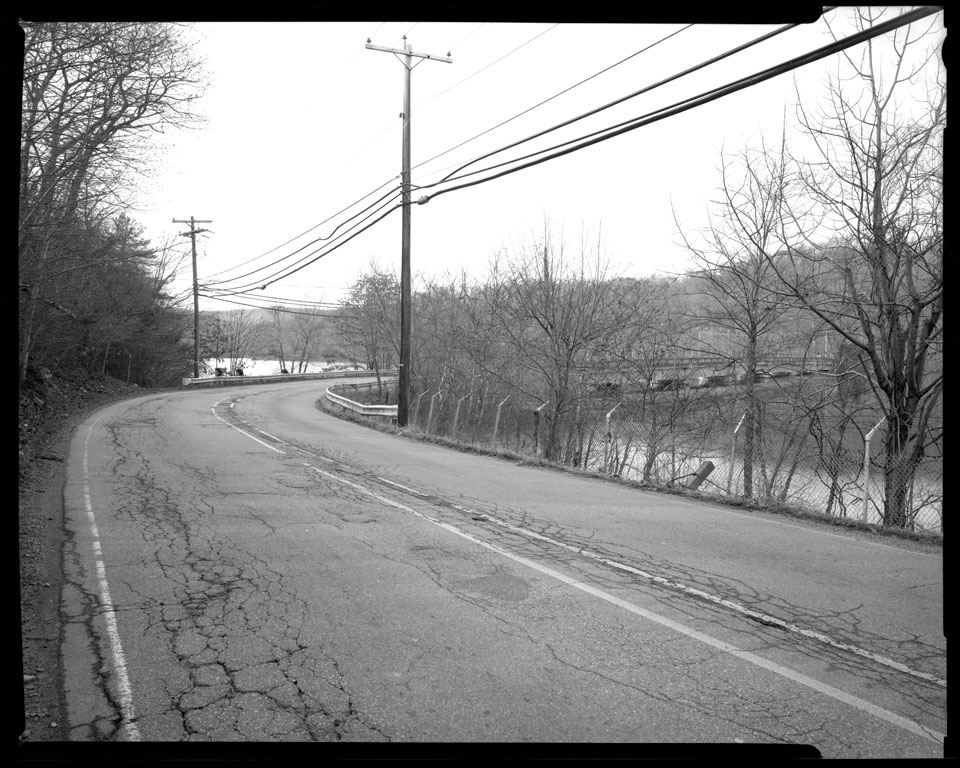

Approach to bridge from west side. View looking southwest. |

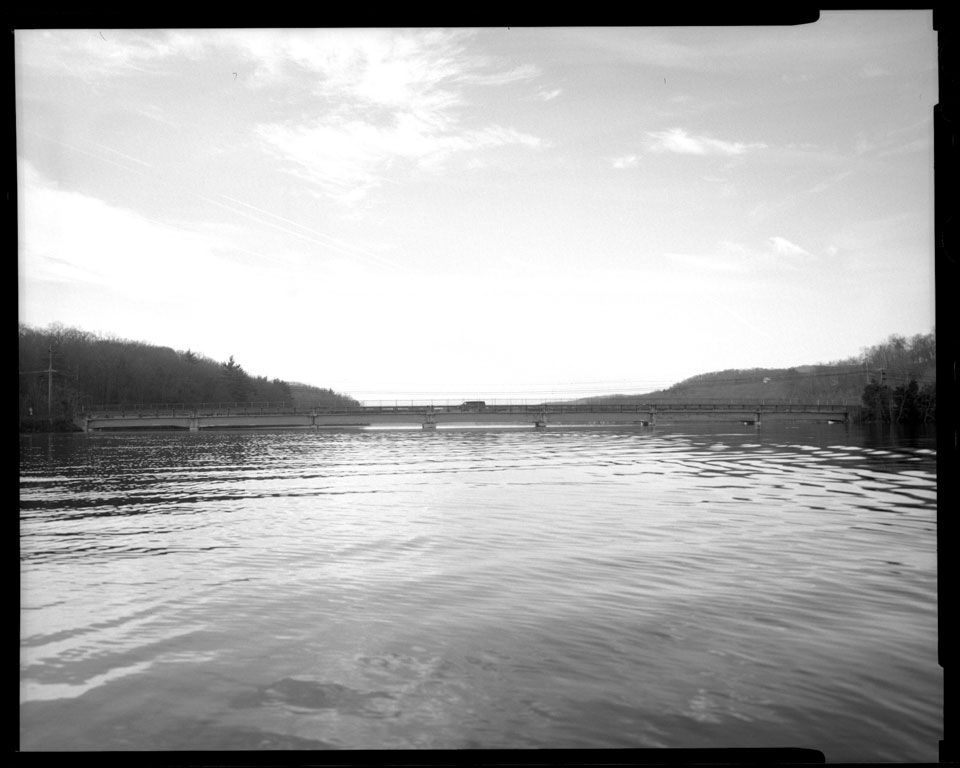

Oblique view of north elevation. View looking southwest. |

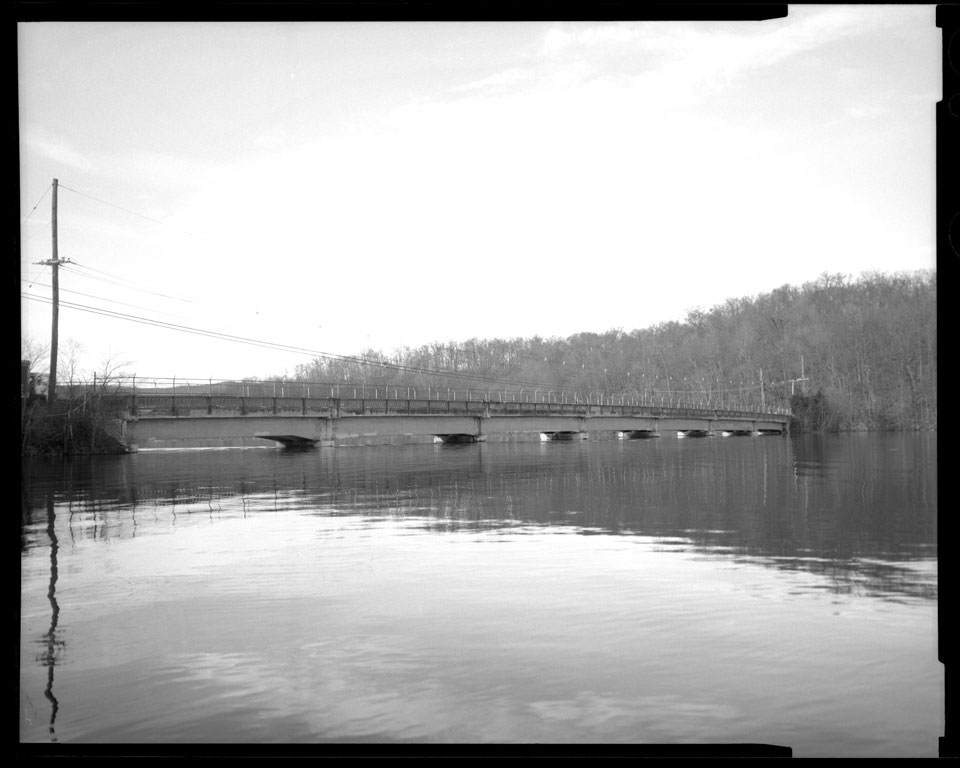

North elevation. View looking south. |
Oblique view of south elevation. View looking northeast |
South elevation. View looking north. |
View across deck. View looking east. |
View across deck. View looking west. |

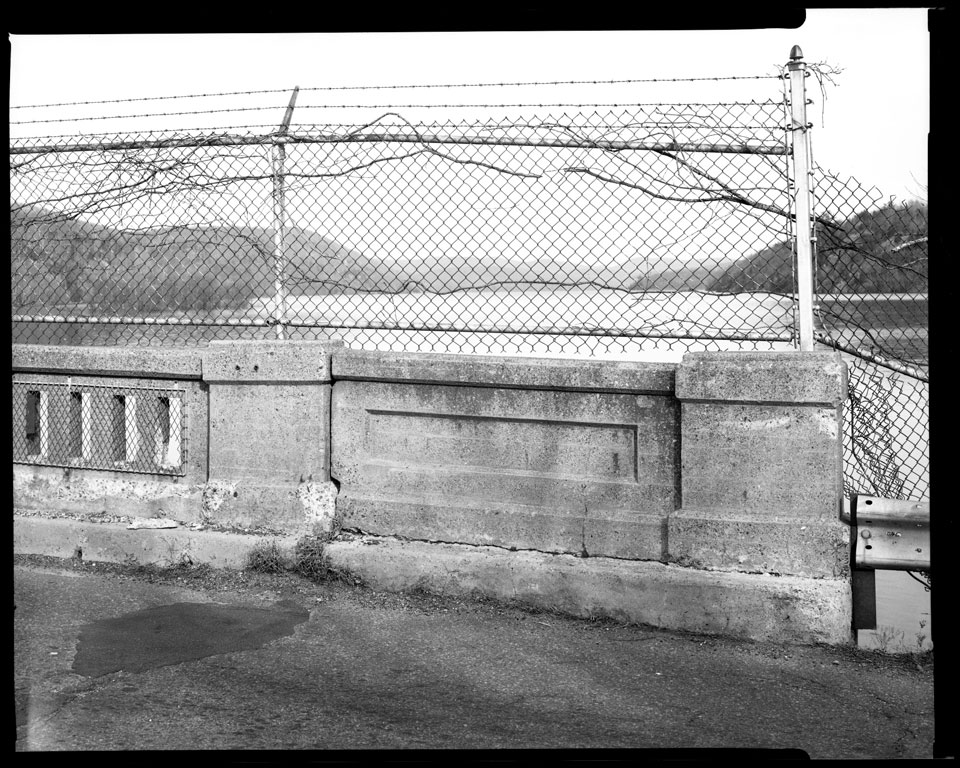

Detail view of west abutment, exterior of end post, and parapet at Span No. 1. View looking north. |

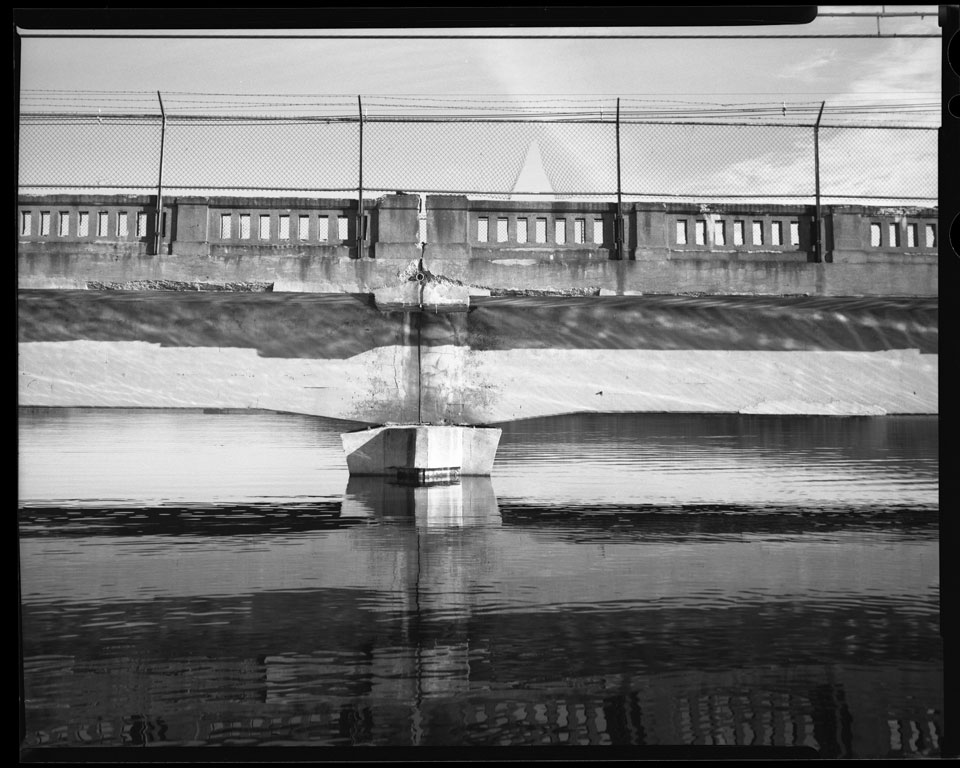

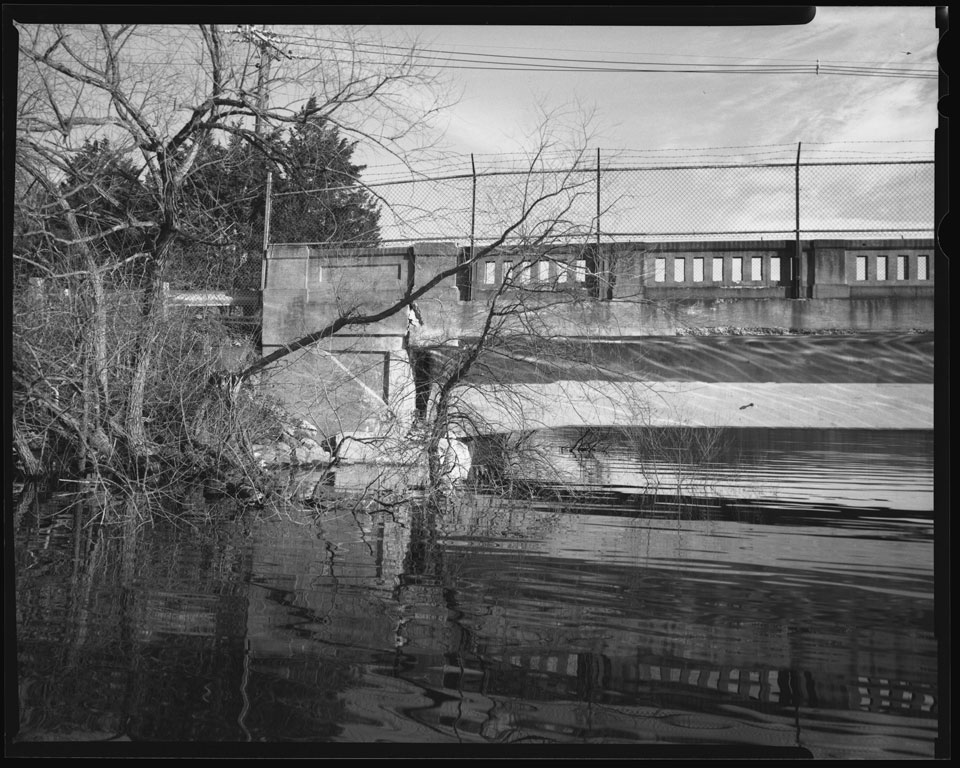

Detail view of modified (repaired) Pier No. 3 and junction of spans 3 and 4. View looking north. |

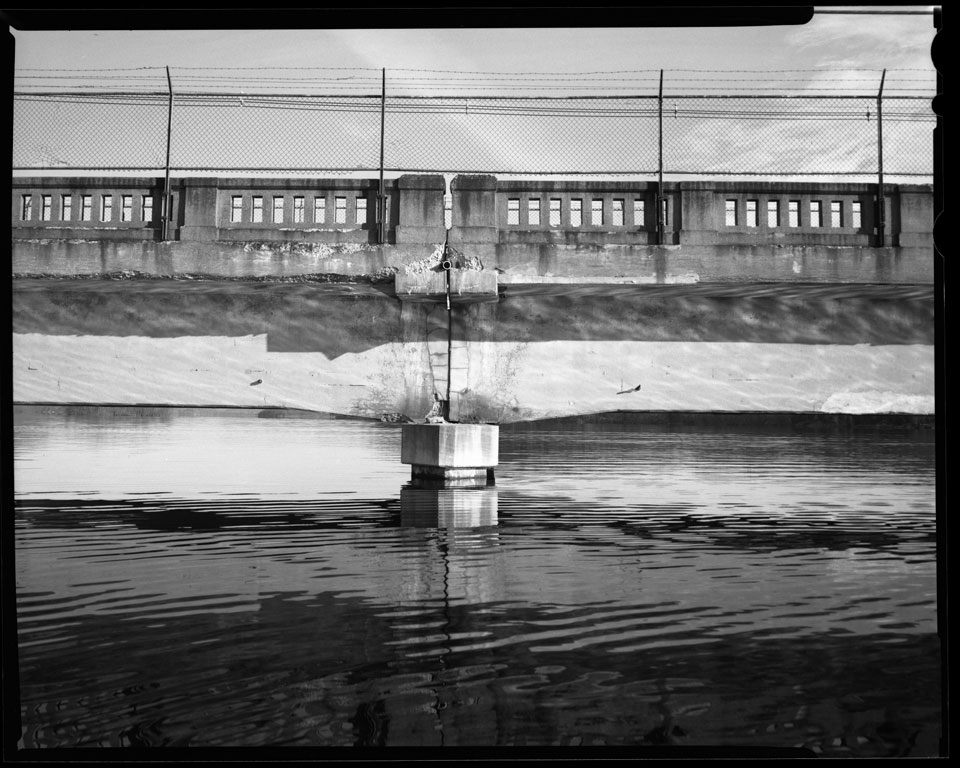

Detail view of Pier No. 4 and junction of Spans 4 and 5. View looking north. |

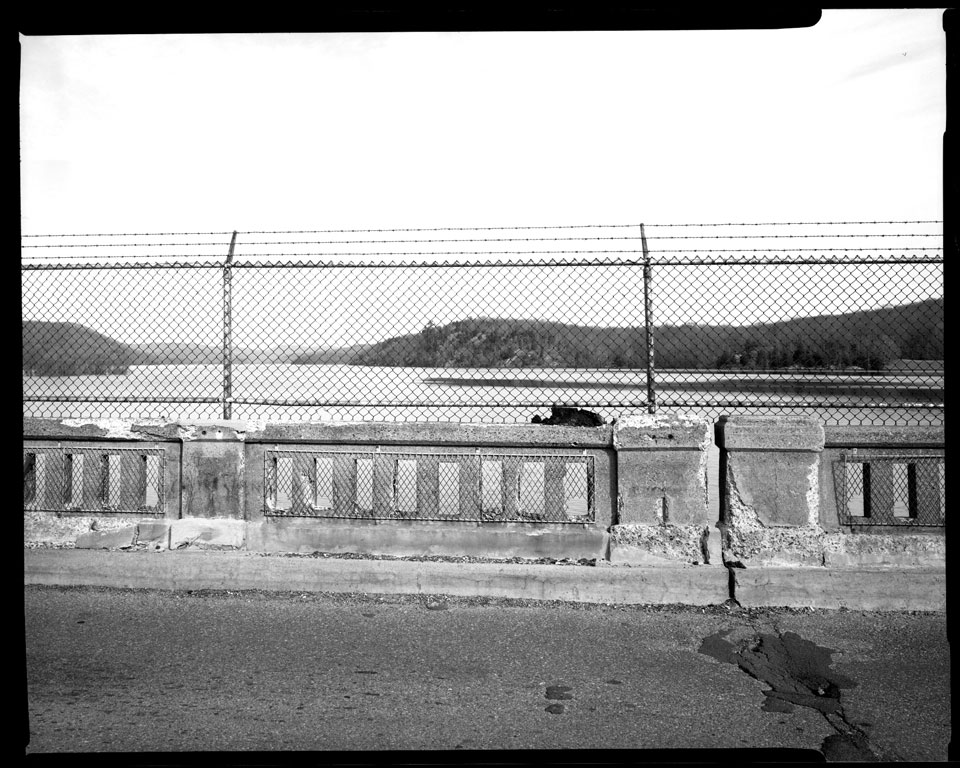

Detail view of interior of east end posts and solid parapet section. View looking north. |
Detail view of interior of parapet and junction of Spans 4 and 5. View looking north. |
Raymond Dam Monument
The Dam is centrally located in the complex of original buildings. It is approximately five-feet high in the center by 15-feet long. The monument is faced with river stone and segmental arch central feature and wings are capped with a cast concrete coping. This form is repeated as a design element in the aeration pond. Constructed in 1931 when the Wanaque Dam was re-dedicated as the Raymond Dam in honor of the former Newark Mayor and North Jersey District Water Supply Commission Commissioner Thomas L. Raymond.
Maintenance Building and Garages
Gabled-roofed, one-story cinder block building with two-pen bays for salt storage and a semi-“U” plan, flat roofed, one story building with dozens of garage bays.
Gaging Station
Is a small free-standing building located immediately adjacent to the Overflow Channel near Greenwood Lake Turnpike.
Fencing
Metal picket fencing and native stone-faced pairs.
